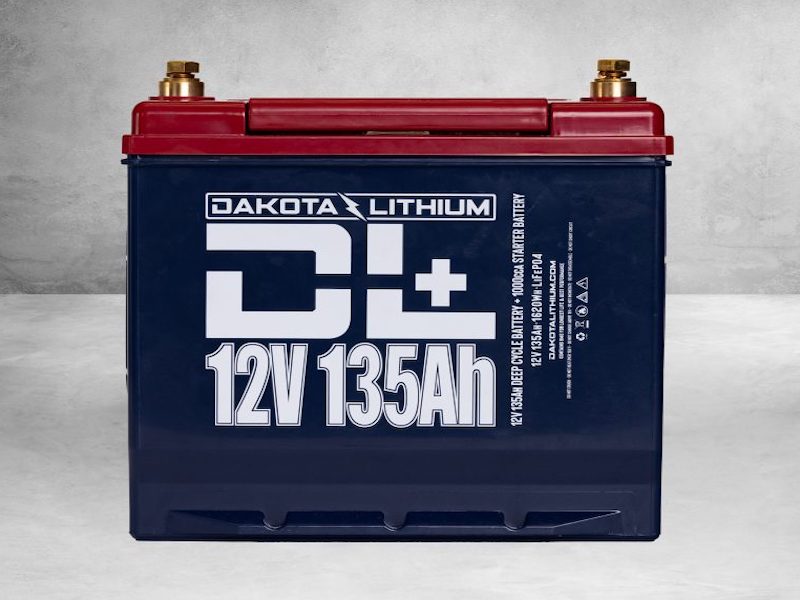

DAKOTA LITHIUM DL+ 12V 135AH Dual Purpose 1000CCA Starter Battery Plus Deep Cycle Performance
Rhino Adventure Gear is Excited to bring you Dakota Lithium Batteries
If you don't see the exact Dakota battery you are looking for contact us here!
The ultimate battery in energy density and versatility. 135 Amp Hours of deep cycle Dakota Lithium performance PLUS 1,000 CCA of engine starting power PLUS internal even-heat technology for use in extreme temperatures = unlimited possibilities. Start your car, crank up the car audio, or run your trolling motor, golf cart, or any electronics — this is one battery built to power many passions. Engineered for high performance in rugged and extreme conditions, the DL+ 12V 135Ah battery includes DL’s internal even heating technology that allows for charging and using the battery in extreme temperatures down to -20F. Built to start boat and car engines, the DL+ 12V 135Ah battery also has 135 Amps of charging capacity, allowing you to charge the battery from your vehicle’s alternator. Charges 5X faster than traditional batteries. 60 minutes or less when combined with a 135 Amp charger or alternator.
Exceptional energy density with 5X the power of traditional batteries. 135 Amp Hours (Ah) of capacity engineered to fit inside a group 24 battery case that is 25% smaller than a Dakota Lithium 100 Ah battery.
Engineered with Lithium Iron Phosphate (LiFePO4) technology this battery has 5X the power, half the weight, and lasts 5 times longer than a lead acid battery – providing exceptional lifetime value. Built for dual purpose performance, the DL+ 12V 135Ah battery provides 1,000 cold cranking amps (CCA) and a high continuous discharge rate, making it a great choice for high amp draw applications like starting engines, car audio, heavy machinery, golf carts, or any electronics that require a lot of power at one time. In addition, the DL+ 12V 135Ah battery provides the same legendary deep cycle marine performance that Dakota Lithium batteries are known for, giving you lots of power for a long time. This is the most versatile Dakota Lithium battery and includes a terminal adapter kit compatible with most automotive, deep cycle marine, and other deep cycle applications. Easily link in series to create 24V, 36V, or 48V systems. LiFePO4 charger included. Backed up by an 11 year warranty.
Approved for use with Mercury outboard motors and meets the Mercury requirements for lithium starter batteries. Exceeds American Boating and Yachting Council (ABYC) standards for lithium battery use in boats and watercraft. Universal alternator compatibility allows charging of the battery from most marine outboards, car, truck and boat engines.
11 Year Warranty
World beating, best in class, eleven year manufacturer defect warranty.
Storage Capacity
135 Ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 135 Amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.
Engine Starting Power
Lithium battery equivalent to 1,000 Cold Cranking Amps (CCA) of lead acid battery engine starting power. Suitable for automotive and other applications. Marine Outboards: Please refer to your manufacturer recommendations.
Voltage
12.8V (Dakota Lithium 12V batteries can be used in series for up to 48V systems)
Energy
1620 Watt-hours (Wh)
Terminals
M8 size bolts. Includes a terminal adapter kit with automotive & marine posts that screw into the M8 bolt terminal, and M8 brass terminal bolts. Easy to adapt to different connection needs. (Max torque 15 ft. lbs.) (Max 5 ft. lbs. on terminal post adapters)
Size
12.89.5”x 6.9”x 7.75” (242.5x176x197mm) Group 24 equivalent
Group Size 24
Group 24 compatible physical dimensions & 24F terminal orientation. Group 34 compatible. Cranking power (CCA rating) & usable deep cycle capacity is much higher than a lead-acid battery of the same group size. Group 24F 24R 24H 24T compatible. BCI Group GC2. M27-1000 compatible.
Weight
27.2 lbs (12.3 Kg). 65% lighter than a SLA or lead battery. 1/2 the weight of a normal car battery.
Lifecycles (Battery Life Span)
Up to 80% capacity for 2,500 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Waterproof Rating
IP 67 waterproof rating achieved through robotic liquid welding of the lid and terminals.
Operation Temperature
Ideal for rugged & harsh environments. Much better than SLA or other lithium batteries. -20°F min, +150°F max optimal operating temps (battery performs well down to -20°F). Internal even-heat technology allows for charging below 32°F. BMS high temp cut off at 167°F / 75°C.
Discharge
135A max continuous discharge, 1000A max 2 second pulse, 900A max 5 sec pulse. 9.0V Max discharge, 11.0V Max recommended discharge.The flat discharge voltage curve provides a 75% bigger capacity than a 135Ah SLA battery with the same CCA rating.
Peak / Continous Charge
Recommend for longest life 70A or less (.5C), Peak charge acceptance 165A max for one minute, 200A max BMS cutoff. Max continuous 135A (1C). 14.4V recommended, 15V max, BMS protection from over charging will cut off at 15V. Included is a free 12V 10 Amp (A) LiFePO4 compatible charger that charges at the recommended 14.4 Volts.
Max Charge / Alternator Size
Peak charge acceptance 165A max for one minute, 200A max BMS cutoff. Drop in replacement for lead acid and AGM starter batteries for vehicles. Limited to a max alternator size of 150 amps or less per battery (link multiple batteries in parallel for alternators >150 Amps).
Reserve Capacity
340 minutes (RC25 @ 80°F
Includes Active BMS Protection
Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.
Internal Even-Heat Technology
Increases performance in extreme cold. When charging the battery in temperatures below 0°C/32°F DL's internal heating element will warm the cells to 0°C/32°F. This increases the lifespan, performance, and efficiency of the battery.
Certifications
All DL batteries are UN38 certified. Dakota Lithium's cells are UL1642 certified and have been tested per IEC62133 standards. Meets all US & International regulations for air, ground, train, & marine transport.
UL & RVIA Compliant
UL 2054 certified and RVIA compliant - Recreational Vehicle Industry of America
ISO 9001:2015
Dakota Lithium is ISO Certified per 9001:2015 standards, and select models are produced in ISO 14001 certified facilities.
Dual Purpose Use
Multi-purpose use as a deep cycle battery and/or as a starter battery for starting gasoline engines. Marine Outboards: Please refer to your manufacturer's recommendations
Charger Included
12V 10A LiFePO4 charger included. Dakota Lithium 12V batteries should be charged at 14.4 volts, higher than AGM or lead acid. Lead acid chargers will work, but will only charge the battery to 80% of capacity.
Mercury Motor Compliant
Meets Mercury Motors requirements for lithium starter batteries. (This is for the Marine world folks out there!
Suitable for:
- STARTING CAR AND TRUCK ENGINES
- DEEP CYCLE APPLICATIONS
- TROLLING MOTORS #FISHLONGER
- #OVERLAND & TRUCK BUILDS
- #VANLIFE & RV BATTERY UPGRADE
- CAR AUDIO
- GOLF CARTS & ELECTRIC VEHICLES
- LINK IN SERIES FOR 24V, 36V, 48V
- INDUSTRIAL BATTERIES (BULK PRICING)
- LIFEPO4 REPLACEMENT FOR SLA 12V
- FISH FINDERS, FLASHERS, & BOATING ELECTRONICS
- RECREATIONAL VEHICLES, CAMPERS, AND TRAILERS
- OFF-GRID HOMES
- MERCURY OUTBOARD MOTORS
